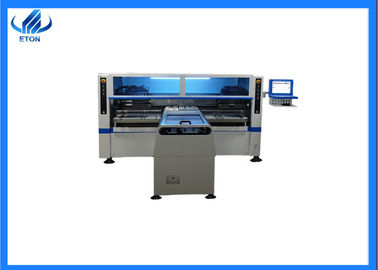

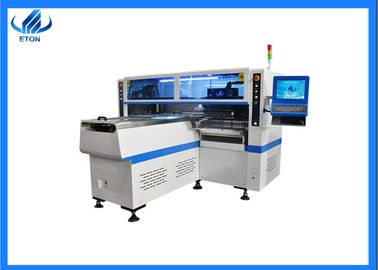

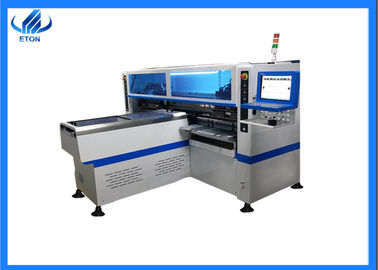

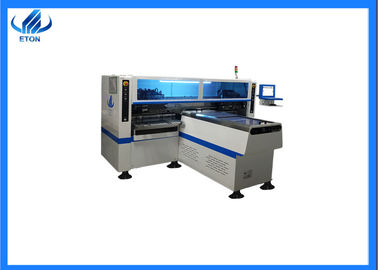

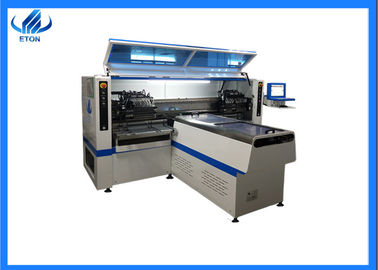

smt mounter magnetic linear motor high speed pick and place machine ht-f9

1. product details


• Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
• Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
• Calibration automatically, high precision.
• Group to take and group to mount.

Technical parameter  of pick and place machine ht-f9

product features of smt mounter ht-f9


• X,Y,Z drive way is high-end magnetic linear motor+servo motor.
•  Install 5 camera and adopt vision for the flight identification.
• PCB clamping is adjustable pressure pneumatic
• Vision for the flight identification ,mark correction
• Electronic feeder feeding system.
• Non-stop material re-loading function.
• Auto-optimization after coordinates generated


Product parts of high speed mounter ht-f9


• Saline shaft from korea
• Mark camera from HK vision
• Grating scale from Renishaw,UK
• Guideway from IKO Japan
• Pneumatic components from SMC Japan
• Sensor from Beckhoff Germany
• Drag chain from IGUS Germany


Business terms


our services

• We have a professional sales manager to provide you with professional advice and services
• We provide 24-hour online service to solve your problem quickly
• We will specify the production plan for you according to your budget
• 1 year free warranty
• Visit customers regularly and gather information
• Provide latest information about technology and equipment
• Software updates are free for life

Company information

ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.



Packing & shipping of smt mounter ht-e5s

Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:


Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.


Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.


Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
