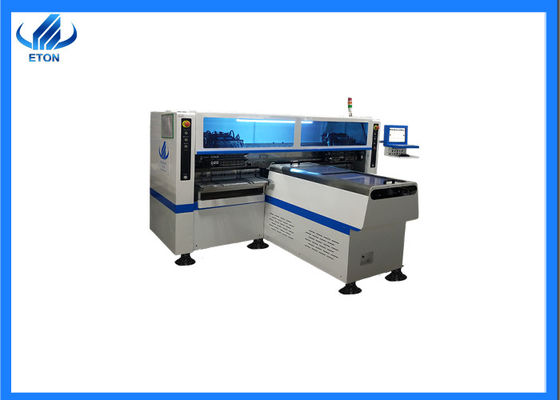

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

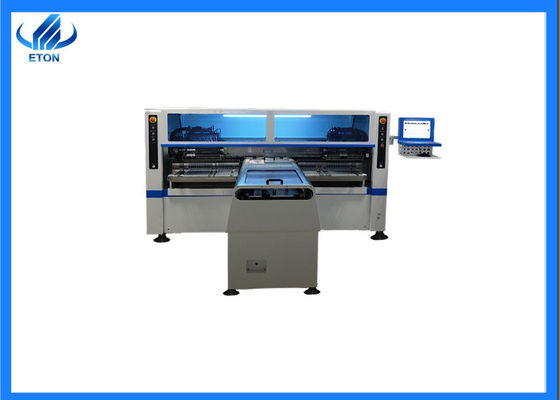

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

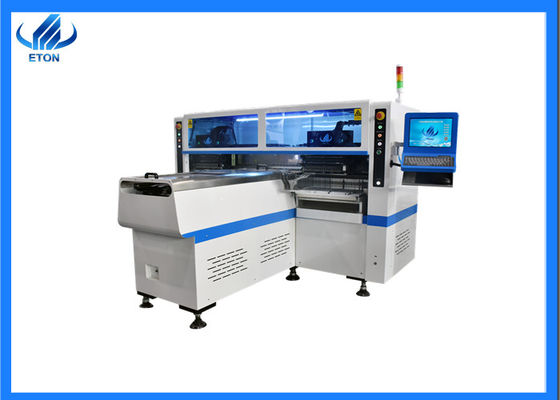

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

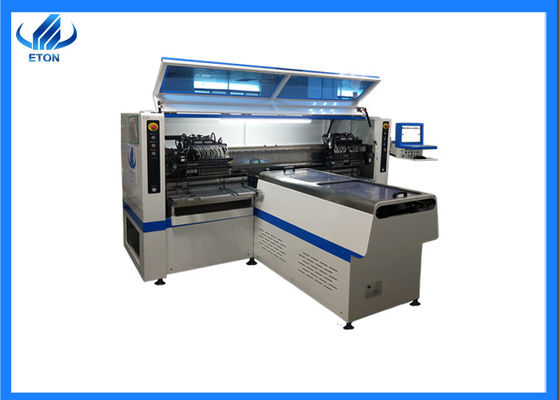

Büyük resim :  pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: eton
Sertifika: ccc,ce,sira
Model numarası: HT-F9
belge: Ürün Broşürü PDF
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 ünite
Fiyat: $80000/unit
Ambalaj bilgileri: Su geçirmez malzeme ambalaj ve tahta sandık
Teslim süresi: 30 iş günü
Ödeme koşulları: L / C, T / T
Yetenek temini: Ayda 80 birim
İletişim
Detaylı ürün tanımı
PCB boyutu: 250mm * herhangi bir uzunluk pcb kelepçe; ing: ayarlanabilir basınç pnömatik
sistem: Windows 7 Yazılım: ar-ge bağımsız olarak
Görüntüle: dokunmatik ekran monitör giriş aygıtı: klavye fare
Kamera Sayısı: 5 güç: 380AC 50Hz
güç tüketimi: 6kw montaj modu: Sopa grubu grubu
Bileşenler Alanı: 0.2mm besleyiciler istasyonları: 68PCS
Nozullar: 68PCS Montaj hızı: 200000CPH
Montaj yüksekliği: 13mm

1.product details


it can Produce with 2～４ types of materials with capacity at same time with high capacity, it is available for 5m,50m or any length of flexible strip and roll to roll.

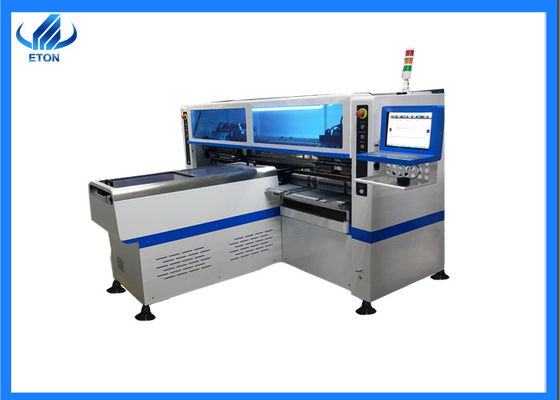

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 0





2.product Technical parameters​  of high speed pick and place machine



Model numberHT-F9
Dimension2700*2120*1550mm
PCB size1200*330～80*330mm
PCB thickness0.5～5mm
PCB clampingadjustable pressure pneumatic
mounting modegroup to take and group to mount
systemwindows 7
displaytouch screen monitor
input devicekeyboard,mouse
NO.of camera5 sets of imported camera
mounting precision±0.03mm
mounting height<13mm
mounting speed200000CPH
componentsLED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers
components space0.2mm
NO.of feedings station68pcs
NO.of nozzles68pcs
power380AC 50HZ
power consumption6KW
operating environment23℃±3℃
conveyor transmissionMAX length:1200mm
transmission speed>500mm/sec
transmission directionsingle(left→right,right→left)
transmission modeonline drive
position modeoptical
air pressure>5.0kg/c㎡
electrical controlindependent research and development by ETON
motion control card module 1setindependent research and development by ETON
X.Y axis drive wayhigh-end magnetic linear motor+servo motor
feeding wayelectric feeder with double motor



pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 1




 2.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 2



3.Packing & shipping of smt mounter machine


Packaging materialsWaterproof material and wooden case
Lead timeDelivery within 30 days after receipt of payment..
portShenzhen
Delivery timeTransshipment and partial shipment according to the contract


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 3






4.Company profile

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 4

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 5



pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 6


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 7


5.Our  Our certificates and certifications

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 8


6.our services
pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 9

7. trade show


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 10







pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 11














  • Tin paste
  • solder paste, also called tin paste, gray paste, is a new type of welding material accompanied by SMT. It is a paste mixture formed by mixing solder powder, combustion booster and other surfactants, out margin, etc. Mainly used in SMT industry PCB surface resistance, capacitance, IC and other electronic components welding.
  • The main function of tin paste is combustion-supporting agent, which can remove the oxide layer and some other surface contamination, so that the welding can proceed smoothly.
NameRole
Thixotropic agentAdjust the spread of tin paste and printing performance to prevent the appearance of tail, adhesion and other phenomena.
ActivatorPCB removal of oxide material from the surface layer of the pad and the welding part of the parts has the effect of reducing the surface tension of tin and lead.
Solvent solvent

In the process of mixing tin paste, it plays a uniform role in regulating the life of tin paste.


ResinEnhance solder paste adhesion; protect and prevent PCB oxidation after welding.

  • How the solder paste printing machine works: the circuit board is fixed on the positioning table, and then the left and right scraper of the printing machine prints the solder paste to the corresponding pad by tempering, and the uniform PCB of the leakage printing is input to the placement machine through the transmission table for automatic placement.
