Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| PCB boyutu: | 250mm * herhangi bir uzunluk | pcb kelepçe; ing: | ayarlanabilir basınç pnömatik |
|---|---|---|---|
| sistem: | Windows 7 | Yazılım: | ar-ge bağımsız olarak |
| Görüntüle: | dokunmatik ekran monitör | giriş aygıtı: | klavye fare |
| Kamera Sayısı: | 5 | güç: | 380AC 50Hz |
| güç tüketimi: | 6kw | montaj modu: | Grup almak cent sopa, cent almak cent sopa |
| Bileşenler Alanı: | 0.2mm | besleyiciler istasyonları: | 64PCS |
| Nozullar: | 64PCS | Montaj hızı: | 200000CPH |
| Montaj yüksekliği: | 13mm |

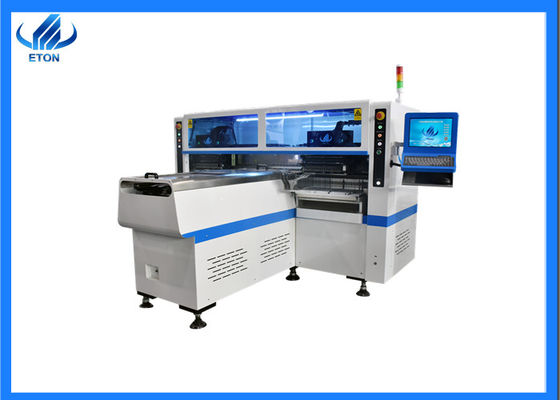

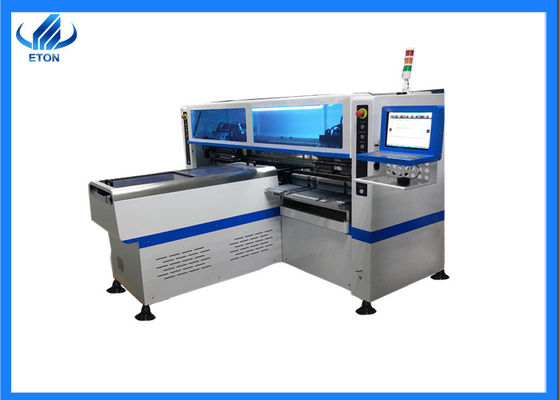

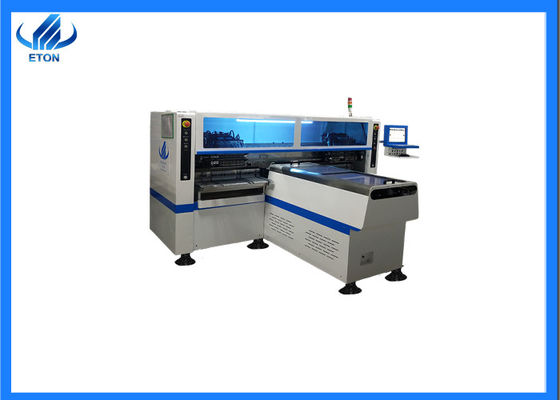

product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision.
Group to take and group to mount.
product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
our clients
trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Classification:
The industry of glue control equipment called a lot of, dispenser, glue filling machine, glue coating machine, glue dropping machine and so on.
The dispenser is divided into three categories:
1. unit dispenser
dispenser controller
Tabletop dispenser
Floor dispenser
2. two-component dispenser
Semi-automatic two-component dispenser
Automatic two-component dispenser
3. Non-standard dispenser
