Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| PCB boyutu: | 80 * 350 mm -350 * 1200 | pcb kelepçe; ing: | ayarlanabilir basınç pnömatik |
|---|---|---|---|
| sistem: | Windows 7 | Yazılım: | ar-ge bağımsız olarak |
| Görüntüle: | dokunmatik ekran monitör | giriş aygıtı: | klavye fare |
| Kamera Sayısı: | 5 | güç: | 380AC 50Hz |
| güç tüketimi: | 6kw | montaj modu: | Sopa grubu grubu |
| Bileşenler Alanı: | 0.2mm | besleyiciler istasyonları: | 68PCS |
| Nozullar: | 68PCS | Montaj hızı: | 200000CPH |
| Montaj yüksekliği: | 13mm |

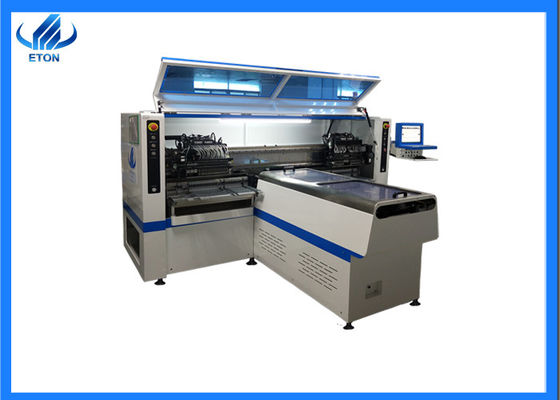

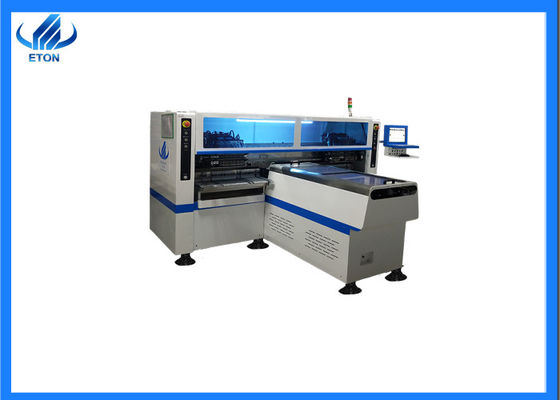

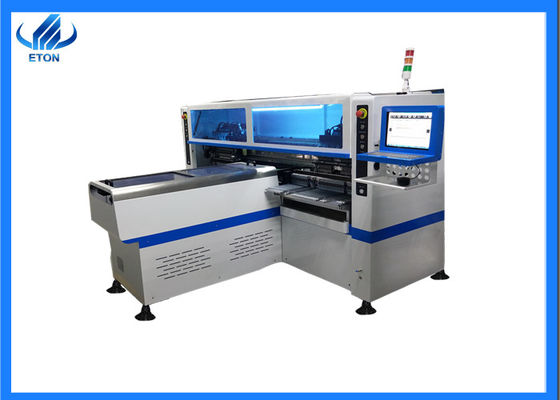

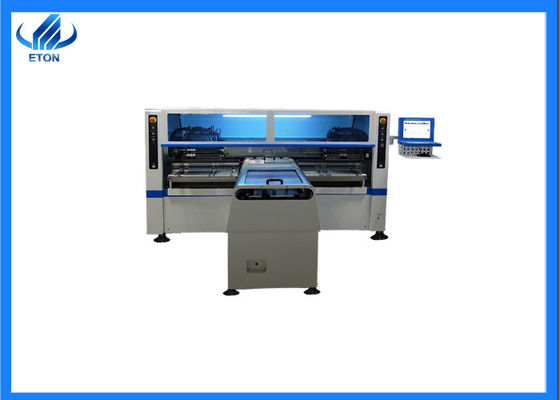

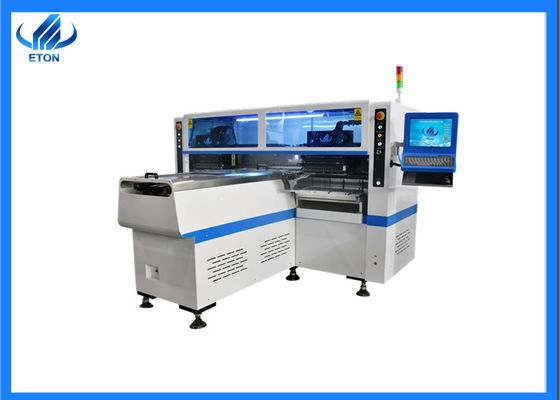

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
