| Warranty: | 1 Year | Applicable components: | 0805,0603,3528,5050 |
|---|---|---|---|
| Name: | SMT Pick and Place Machine | Condition: | new,100% Original,Brand-new |
| Mounting speed: | 500000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine,LED | Feeders: | 136 |
| Vurgulamak: | Professional Pick And Place Machine,High Speed LED Strip Making Machine,Pick Place LED Strip Making Machine |
||

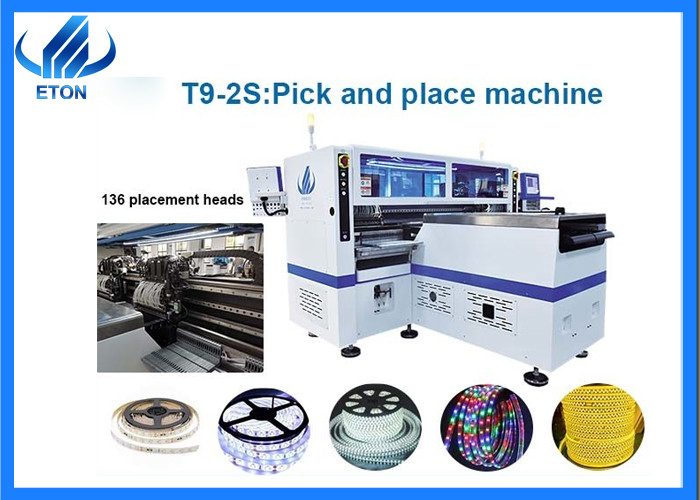

HIGH SPEED AND PROFESSIONAL PICK AND PLACE MACHINE T9-2S LED STRIP making machine
Features
1.Ultra mounting speed: optimum capacity reach 500000CPH.
2.Mounting head: 4 mounting heads, each mounting head has 34 PCS heads, total has 136 PCS heads
3.Feeder station: total has 136 PCS heads
4.Mounting mode: realize the function of two time picking and once placing; produce four kinds of materials at the same time;
5.PCB size:any length* 250(±10)mm, the max length range is 1M per cycle.
6.Camera: 10 sets of camera, high accuracy recognition vision camera ; no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
Technical parameter
| HIGH SPEED AND PROFEESIONAL PICK AND PLACE MACHINE T9-2S | |
| PCB size | 250(±10)mm* any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double-rail+four groups of placement heads |
| No. Of camera | 10 sets of digital camera |
| Repeat precision | ±0.05mm |
| Mounting height | ≦5mm |
| Mounting speed | Double side: 500000 CPH, Single side: 250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc. |
| power | 350 AC 50Hz |
| Power consumption | 9.6KW |
| Electrical control | Independent research and development by ETON |
| Motion control card module 2 set | |
| Feeding way | Intelligent electric feeder with double motor |
| No. Of feeder station | Double side 136 PCS, Single side 68 PCS |
| No. Of head | Double side 136 PCS, Single side 68 PCS |
The production line of T9-2S
Company introduction
ETON was founded in 2011 and More than 11 years experience. Jiangxi intelligent manufacturing Park was completed in 2020. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.
The service and transport
1. The Service
2. The package and transport
Step 1: pack the machine with foam cotton and stretch film to protect the outside of the machine
Step 2: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;
Step 3: professional wooden box packaging.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
