| Warranty: | 1 year | Applicable components: | 0402 |
|---|---|---|---|
| Name: | SMT automatic Pick and Place Machine | Application: | LED lights, electrical products, household appliance |
| Power supply: | 380AC 50HZ | Condition: | New |
| Weight: | 1700KG | Mounting speed: | 45000 CPH |
| Dimension: | 2550*1650*1550mm | Pcb thickness: | 0.5-5 mm |
| Vurgulamak: | 1.2m Max LED Pick Place Machine,LED Lighting Driver Pick Place Machine,SMT 1.2m Pick Place Machine |
||

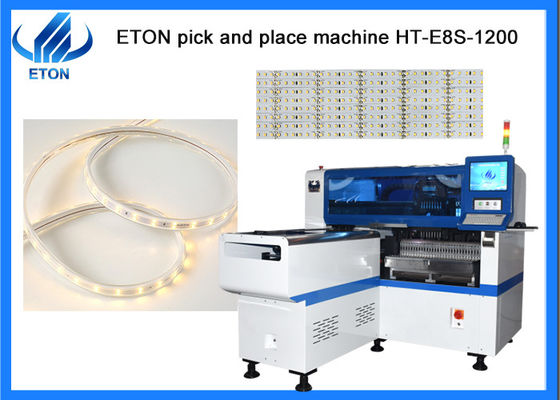

SMT 1.2m MAX length LED lighting driver Pick and place machine
Description
Exclusive Patented Technology:
Machine parameter
| Model | HT-E8S-1200 |
| Dimension | 2550mm*1650mm*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| No. of feeders station | 28PCS single module |
| No. of head | 12 PCS single module |
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
