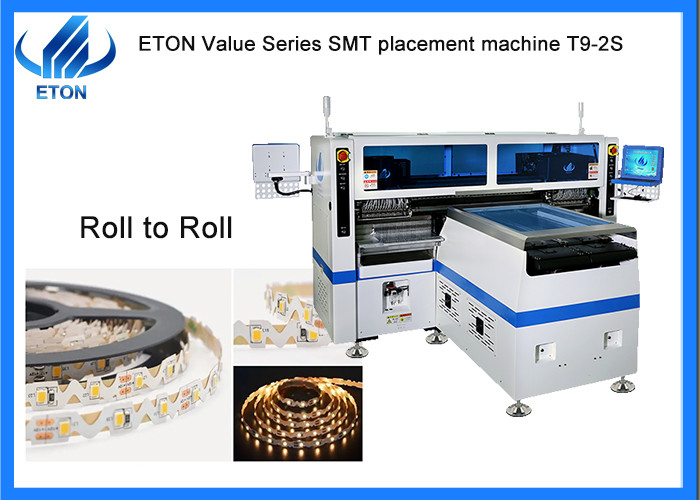

Automatic SMT Placement Machine For 200m Long LED Strip Light

Automatic SMT Placement Machine For 200m Long LED Strip Light
Automatic SMT Placement Machine For 200m Long LED Strip Light Automatic SMT Placement Machine For 200m Long LED Strip Light Automatic SMT Placement Machine For 200m Long LED Strip Light

Büyük resim :  Automatic SMT Placement Machine For 200m Long LED Strip Light

Ürün ayrıntıları:
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Ambalaj bilgileri: Film paketinde ve köpük pamukta ve sağlam ahşap kutular içinde vakum poşetinde ambalajlanır.
Teslim süresi: 30 iş günü
Ödeme koşulları: T/T
Yetenek temini: ayda 50 set
Detaylı ürün tanımı
Garanti: 1 yıl Güç kaynağı: 380AC 50HZ 6kw
Durum: Yeni Ürün Adı: Otomatik SMT yakala ve yerleştir makinesi
Ağırlık: 3100 kilo montaj hızı: Çift taraf: 500.000 CPH Tek taraf: 250.000 CPH (Optimum hız)
Boyut: (U)3454*(G)3035*(Y)1777 mm PCB Kalınlığı: 0,1-0,5 mm
Vurgulamak:

Automatic LED SMT Placement Machine

,

200m Strip smt placement equipment

,

Long LED smt placement equipment

Automatic placement machine for 200m long LED strip light SMT



Machine main features

  • Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
  • Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
  • Ultra high speed capacity: 500,000 CPH
  • Intelligent electric feeder,supporting high-speed machine series.
  • Adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
  • The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
  • The range of feeder station is double of placement four kinds of materials at the same time.
  • Automatic production with identification date, correction and fill missing component automatically.
  • Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.
  • The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
  • With the function of filling missing component automatically, realize industry 4.0 Unmanned Workshop.
  • Complaint with CE standards.

Machine main parameter

Model T9-2S
Dimension (L)3454*(W)3035*(H)1777 mm
Total weight 3100 kg
PCB size 250(±10)mm* Any length
PCB thickness 0.1-0.5 mm
PCB clamping Vacuum adsorption, cylinder clamping, track width adjustable
Mounting way Group picking and group placing
Mounting mode Double rail + Four groups of placement heads
No. of camera 10 sets (Digital camera)
Software R&D independently
Repeat precision ±0.05 mm



Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

Automatic SMT Placement Machine For 200m Long LED Strip Light 0

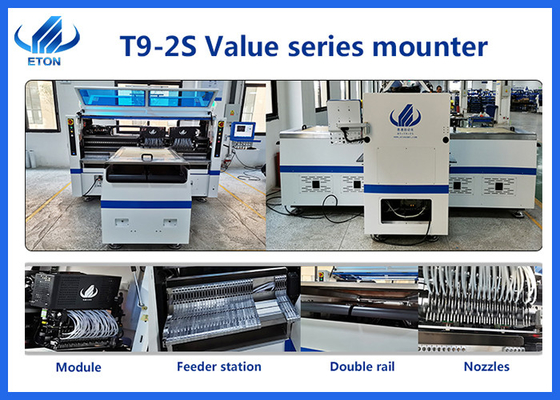

Machine main part

Automatic SMT Placement Machine For 200m Long LED Strip Light 1

Service

  • We provide whole line solution for our clients needs.
  • We have some official site in India as Mumbai, Dammam and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
  • As long as you buy our machine we will arrange our engineers to install debug and training for you for free, until you learned how to operate the machine.

Automatic SMT Placement Machine For 200m Long LED Strip Light 2

FAQ

Q. What is your machines quality?

A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.



Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.



Q. Is the machine easy to operate?

A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
