Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Garanti: | 1 yıl | Adı: | SMT otomatik Yakalama ve Yerleştirme Makinesi |
|---|---|---|---|
| Güç kaynağı: | 380AC 50HZ | Durum: | Yeni |
| Ağırlık: | 1700kg | montaj hızı: | 200000-250000 CPH |
| Boyut: | 2700*2300*1550mm | PCB Kalınlığı: | 0,5-1,5 mm |
| Konumlandırma doğruluğu: | 0,025 mm | ||
| Vurgulamak: | 250K Capacity Pick And Place Machine,250K Capacity SMT Pick Place Machine,RGB Light SMT Pick Place Machine |
||

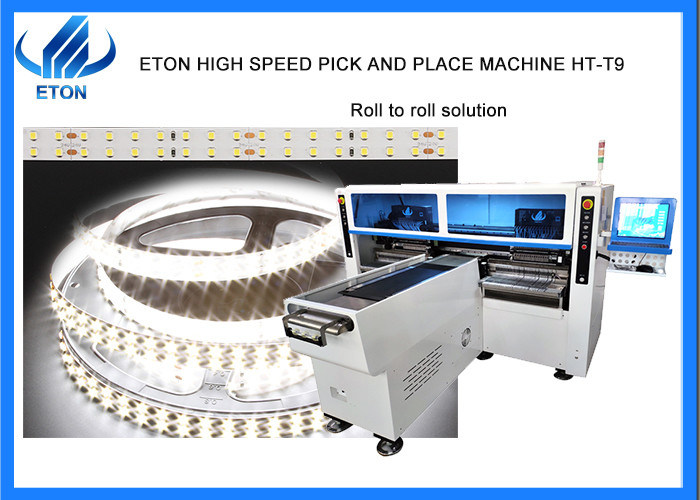

Ultra 250K capacity dual module RGB light pick and place machine
Production description
Dual arm magnetic linear high speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000 CPH.
Features
Machine parameter
| Model | HT-T9 |
| Dimension | 3100*2250*1650mm |
| Total weight | 1700kg |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting speed | 20-25W CPH |
| No. of feeders station | 68PCS |
| No. of head | 68PCS |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Our Exhibitions
As an experienced company of trading SMT pick and place machine with more than 30 countries and regions aboard, Eton has participated in many exhibitions of foreign countries, such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc. And also we have took part in our domestic exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
