| Warranty: | 1 Year | Applicable components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick and Place Machine | Condition: | new,100% Original,Brand-new |
| Product name: | Place Machine\ LED Mounter\LED Assembly Machine | Mounting speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Feeders: | 48 |
| Tape width: | 24mm,8mm,12mm | ||
| Vurgulamak: | SMT Mounting LED Chip Mounter,9W CPH LED Chip Mounter,SMT Mounting LED Chip Mounter |
||

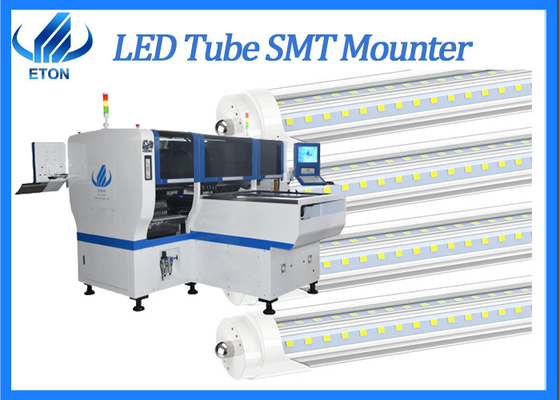

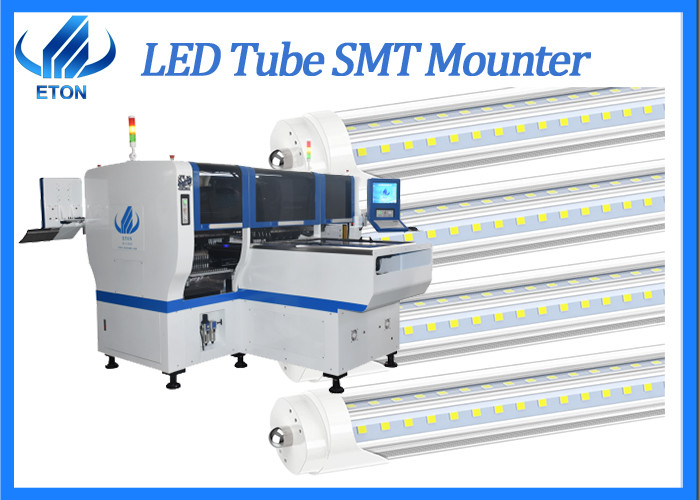

ETON SMT placemant machine With 90000CPH for led DOB making chip mounter
Machine introduction
HT-E8D is a dual system,dual module multifunctional mounter to produce two different products at the same time,it can mount the component range from 0402 to 15mm.and e8d has two guide rail, and each rail can produce a product,and the one side is wrong,the other side will continue.E8D-1200 is suitable for the largest PCB board size of 1200 * 300mm,mini size 100*100mm.with a production capacity of 90000 CPH. for the E8 series model,we can provide customized service ,according to your size of your PCB size make the proper machine for your products. in order to service our customers better.
HT-E8D of Technical Parameter
| Dimension | 3150*2250*1650mm |
| PCB Size | Max: 1200*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| No.of camera | 4 sets Vision for the flight identification, Mark correction |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
SMT Line
Advantage
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Exhibition
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
FAQ
1. Is engineer free for machine install ?
A: Yes, we will sent engineer to your factory for machine free install and training once you buy our machine.
2. Is your machine suitable for manufacturing LED Bulb/Panel light/Lens/Display/Flexible strip light/etc?
A: Yes, SMT Machine is widely applied to all kinds of led lighting and electrical board. Suitable for mounting/printing led
chip3014/3528/5050/etc,0402/0603/0805 resistor, capacitor, transformer, bridge, etc
3.Do you have led chip mounter machine?

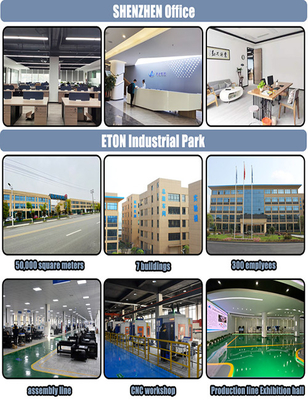

A: Yes, ETON as the largest manufacturer of SMT Machine in China. We own more than 50000 square meters industry park in Jiangxi city, China. Set office in Shenzhen, Zhongshan, Zhejiang, India, Egypt, etc. We provide fellow machines:
1. High-speed pick and place machine for led lighting
2. Multifunctional pick and place machine for all kinds of lighting and electrical board
3. Automatic Stencil Printer machine
4. Semi-automatic Stencil Printer machine
5. Single conveyor machine
6. Double rail conveyor machine
7. Vibrator plate for lens/transformer/Capacitor/etc
8. 8mm/12mm/16mm/24mm electrical feeder
9. Eight zones reflow oven
10. PCB cleaning machine
11. Solder paste mixer
12. Loader machine
13. Unloader machine
14. Whole SMT Line solution
Etc……
Notes for smt industry using reflow soldering machine control program:
1. SMT reflow soldering should only be performed by licensed operators, technicians, engineers or other trained personnel.
2. The operator is not allowed to change the original parameters of each machine at will. The technicians in the SMT workshop of the production department can change some parameters according to different products, but before changing, they need to seek the consent of the SMT workshop engineer and make corresponding records.
3. Before starting SMT reflow soldering, confirm whether the power supply and origin of the machine can work normally.
4. When SMT reflow soldering is running, do not put your hands and feet in the safety cover.
5. During the operation or adjustment of SMT reflow soldering, two or more people are not allowed to operate the same machine.
7. In production, when the PCB is transported on the mesh belt or rail of the SMT reflow oven, the setting data and switches cannot be adjusted.
