| Garanti: | 1 yıl | Adı: | UD390 |
|---|---|---|---|
| PCB Kalınlığı: | 0,4-0,3 mm | Ağırlık: | 240kg |
| Kullanımı: | PCB Boşaltıcı | Uygulama: | LED ışıklar, elektrikli ürünler, ev aletleri |
| Boyut: | 2250*1010*1200mm | Durum: | Yeni |
| Vurgulamak: | 240 KG PCB Unloader,SMT Convenient PCB Unloader,SMT Production Line PCB Unloader |
||

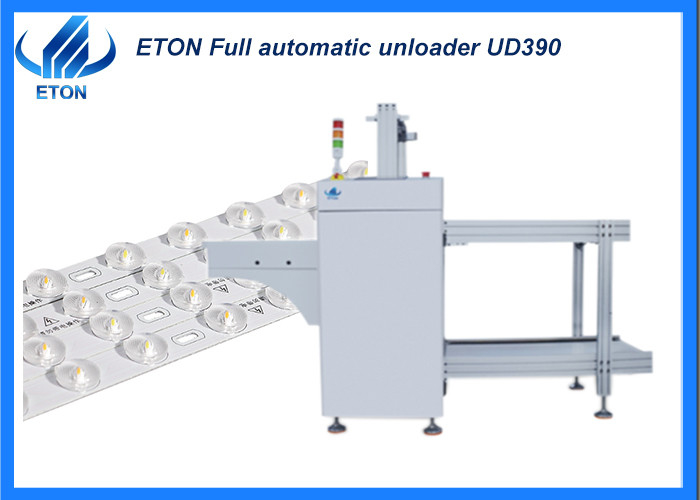

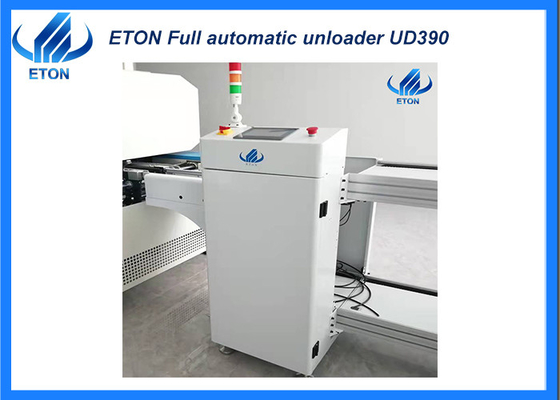

SMT convenient 240 KG unloading PCB in the SMT production line
Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
| Description | This equipment is used for the lowering operation of the circuit board in the production line |
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6 s |
| Frame change time | Around 25 s |
| PCB thickness | 0.4-0.3 mm |
| Transmission height | 900±20 mm |
| PCB size | 80*50-510*390 mm |
| Dimension | 2250*1010*1200 mm |
| Size of turnover frame | 535*460*570 mm |
| Approximate weight | About 240 KG |
| Transmission direction | Left-right, right-left |
| Air pressure and air flow | 4-6 Bar, up to 1L/min |

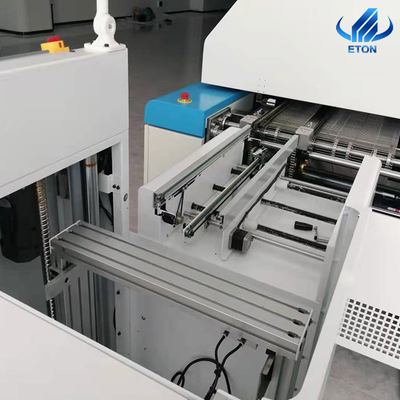

Machine main part
